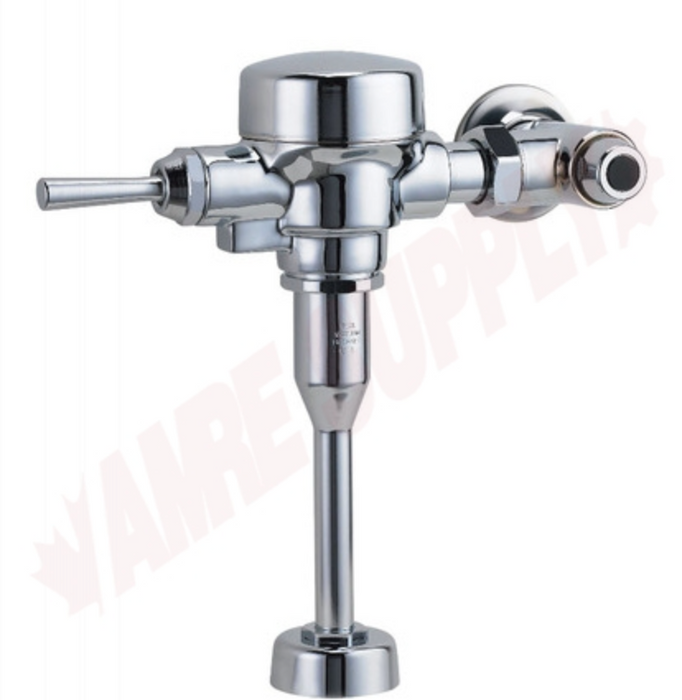

Flushometer Teck w/ VB Urinal
$221.32
Delta TECK® Exposed Urinal Flush Valve. Flush valve for 3/4" top spud flushing urinal-maximum 13" height (c/l of inlet to top of urinal).
Features:
Quiet action, TECK® exposed diaphragm flush valve
Polished chrome plated finish, vandal resistant cover screw
Metal "non hold open" ADA Compliant oscillating handle
Vacuum breaker, renewable seat
Chloramine resistant diaphragm attached to guide with forged metal retainer.
Spud flange and concealed spud nut
For flushing urinals with 3/4" top spud
Maximum 330mm(13") from centerline of valve inlet to top of urinal
1" FIP/3/4" Copper sweat inlet adaptor for angle check stop with protecting cap
Adjustable 121mm (4.75”) plus or minus 11mm (7/16”) inlet/valve outlet centers
Cover tube and S/S wall flange
External water conserving flush adjustment: 1.9 Litre (0.5 GAL.) Factory Set Flush at 60 psi - FIELD ADJUSTABLE from 0.47 to 3.78 Litre Flush (1/8 to 1.0 GAL.)
ADA compliant to meet Handicapped Accessibility Standard ICC/ANSI A117.1 of less than 5 lbs operating force
Also known as: Flushometer
