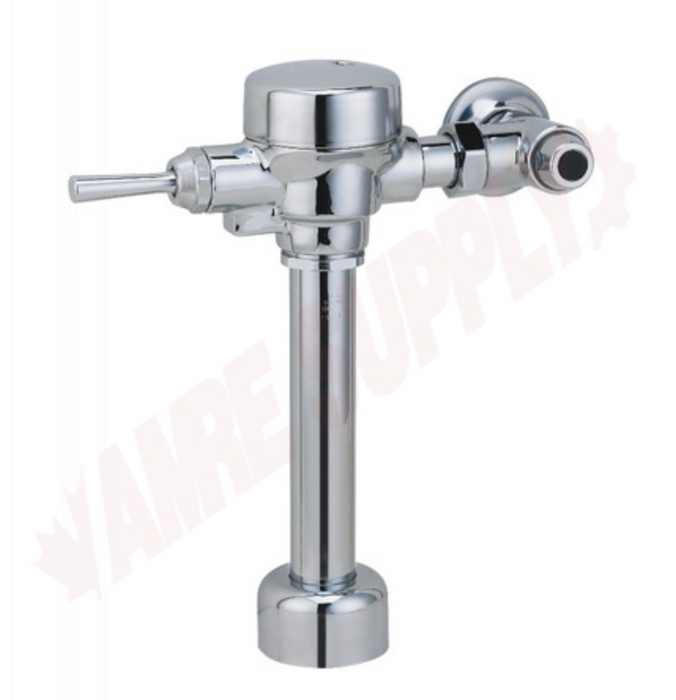

Flushometer Teck w/VB Toilet
$223.54
Delta TECK® Exposed Water Closet Flush Valve. Flush valve for water closets with 1-1/2" top spud, maximum 11-1/2" or 11 3/4" height (c/l of inlet to base of outlet).
Features:
Quiet action, TECK® exposed diaphragm flush valve with polished chrome plated finish
Vandal resistant cover screw
Metal "non hold open" ADA Compliant oscillating handle
Vacuum breaker, renewable seat, cover tube and S/S wall flange
Chloramine resistant diaphragm attached to guide with forged metal retainer.
Spud flange and concealed spud nut
Maximum 292mm(11 1/2") from centerline of valve inlet to top of water closet, except -1 trap seal models which are maximum 11 3/4"
1" FIP/Copper sweat inlet adaptor for angle check stop with protecting cap
Adjustable 121mm (4.75”) plus or minus 11mm (7/16”) inlet/valve outlet centers
External water conserving flush adjustment: 6 Litre(1.6 Gal.)Factory set Flush - Field Adjustable from 4.8L to 25L (1.27 to 6.6 Gal.)
ADA compliant to meet Handicapped Accessibility Standard ICC/ANSI A117.1 of less than 5 lbs operating force
Also known as: Flushometer
